Name:BBA Steady-state sun simulator (Included the IV curve tester)
1.Standard:According to IEC 61215-2:2016、1EC61646 standard requirement
2.Purpose:The machine offer a near natural sun' s ligh-tsource, use BBA class large area steady- state sun si-mulator，its main use large area the aging testing of pv modules , test project included the maximum power test,temperature coefficient measurement , under low rradia -nce performance, hot spot endurance test,ight aging test

Technical specifications:
1. The effective test area:2.0mx 1.0m
2. Class: BBA
3.Spectral matching: Class B
4.Irradiance un uniformity: class B
5. instantaneous instability: Class A
6.Lamp type: Metal lamp

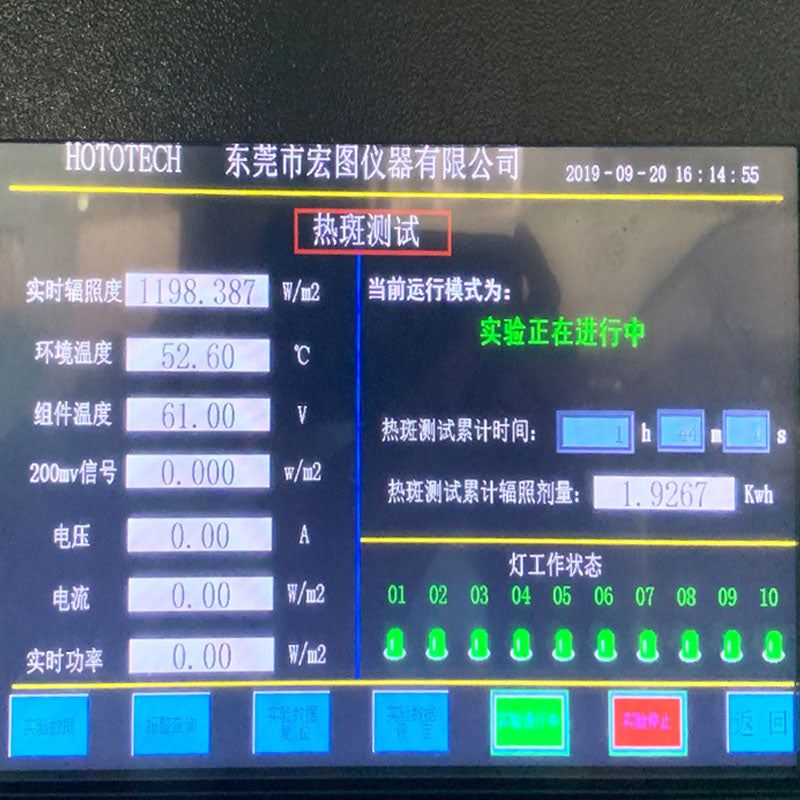

7. Can measurement NOCT. STC、Hot Spot
8.Life time: system use metal halogen lamp, lamp warranty 1000h, use life above 2000h, Warranty period will changer light source, calibration free, satisty class BBA requirement in the standard
9. Lamp light ways :upper lights. vertical direction
10.Spectral and uniformity:ight source in the life cycle，light source' s spectral and uniformity conform class BBA simulator requirement in the standard
11. Light strength range: 800- 1000 W/m continue adjustable, and ensure lamp light source spectraland
uniformity conform class BBA simulator requirement in the standard
12.Environment temperature: 25C-26C
13.380V, 50HZ AC，Current requirement≤150A
14.Software with Chinese and English language and can change each other
15.Software support data save, history information inquiry ,data import/print etc
16.Reporl can save to Word. Excel、PDF、JPG etc format
17.Included a set of computer
