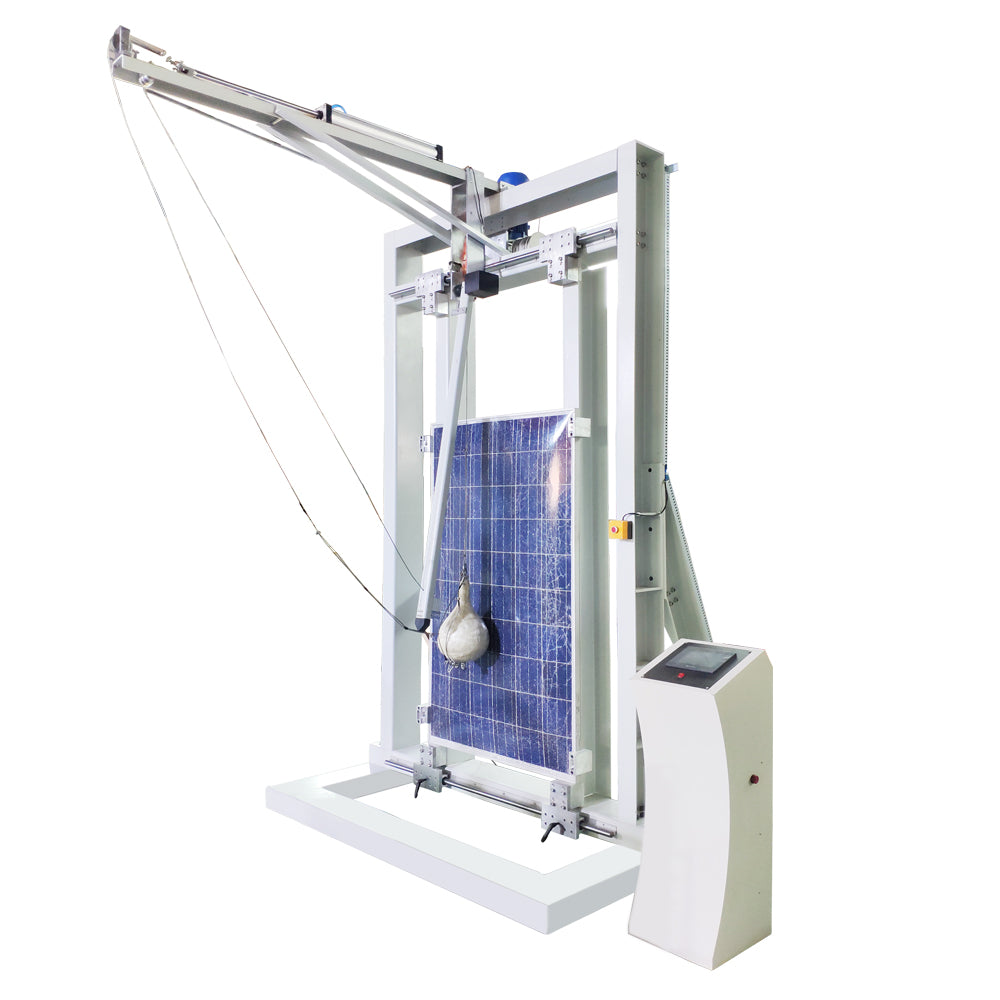

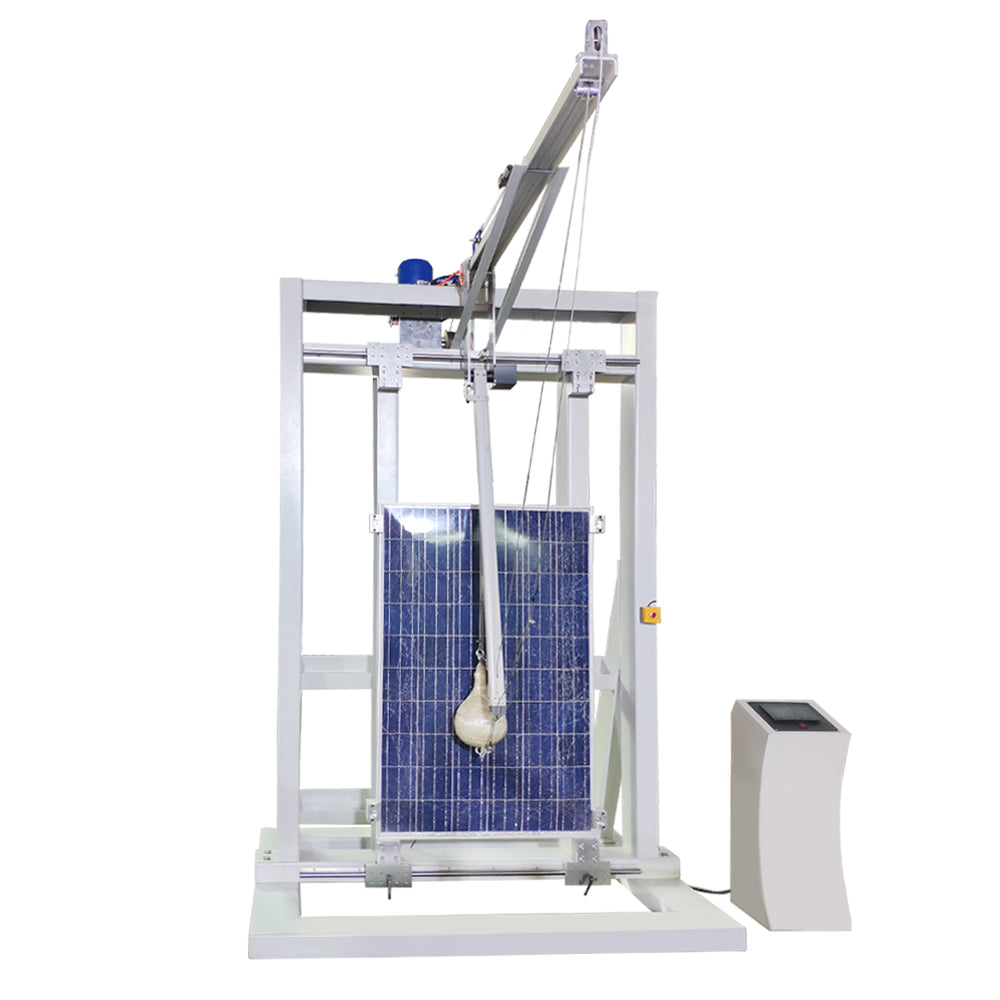

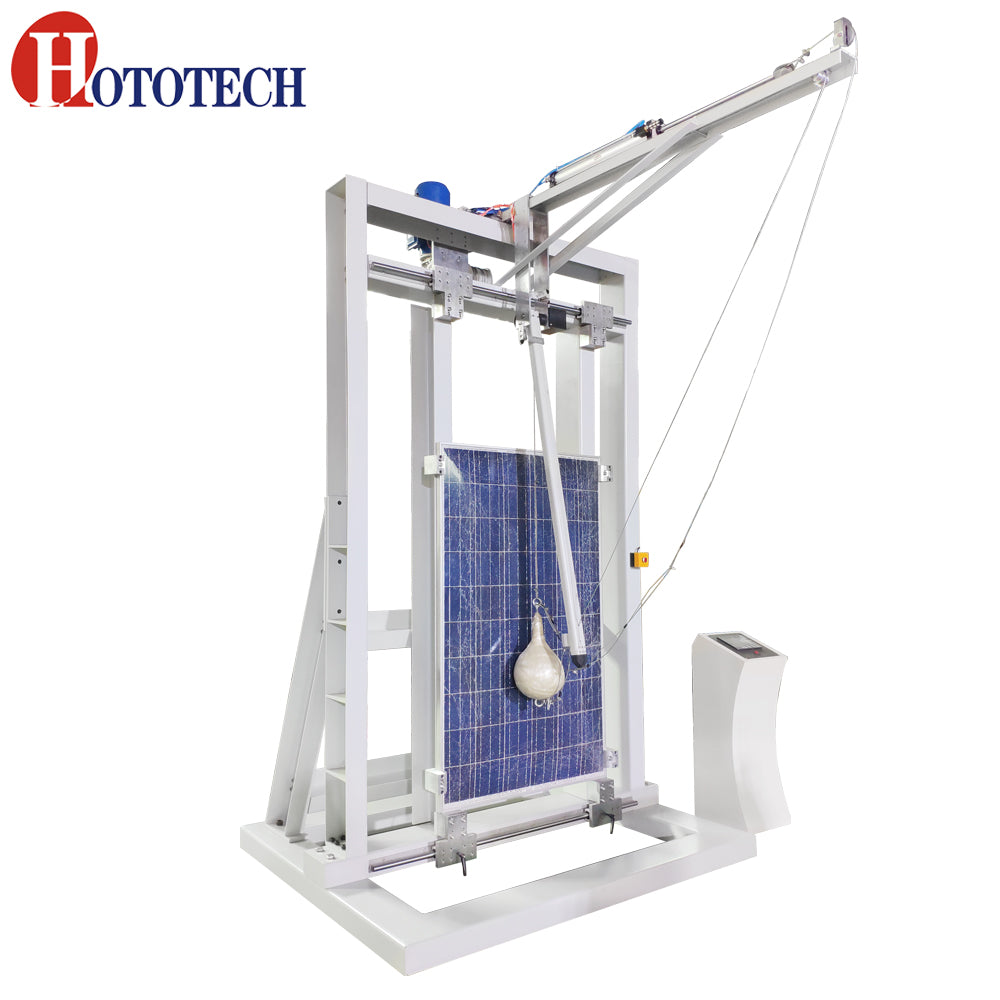

HOTOTECH PV Module Breakage Testing machine for IEC61730-2: 2016 Standard Test
$0.00
customers are viewing this product
1.Standard:According to IEC61730-2: 2016 standard requirement
2.Purpose:This test is provide confidence that cutting or plercing injuries can be minimized if the module is broken
Technical specifications:
1、Impact height:300mm - 1220mm
2、Device test frame
a. The inner dimension of test sample: according to customer' s pv module size requirement
b. Sample frame material :channel width≥1 00mm, thickness 3mm

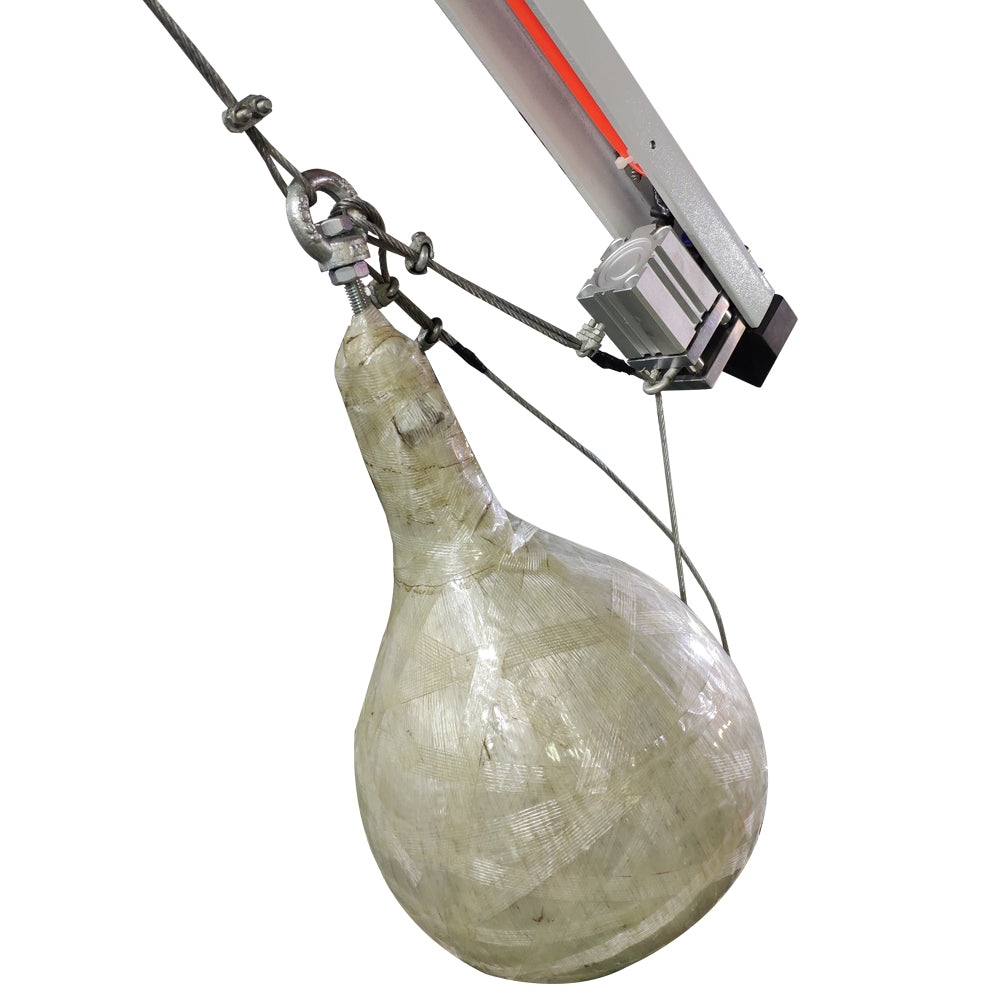

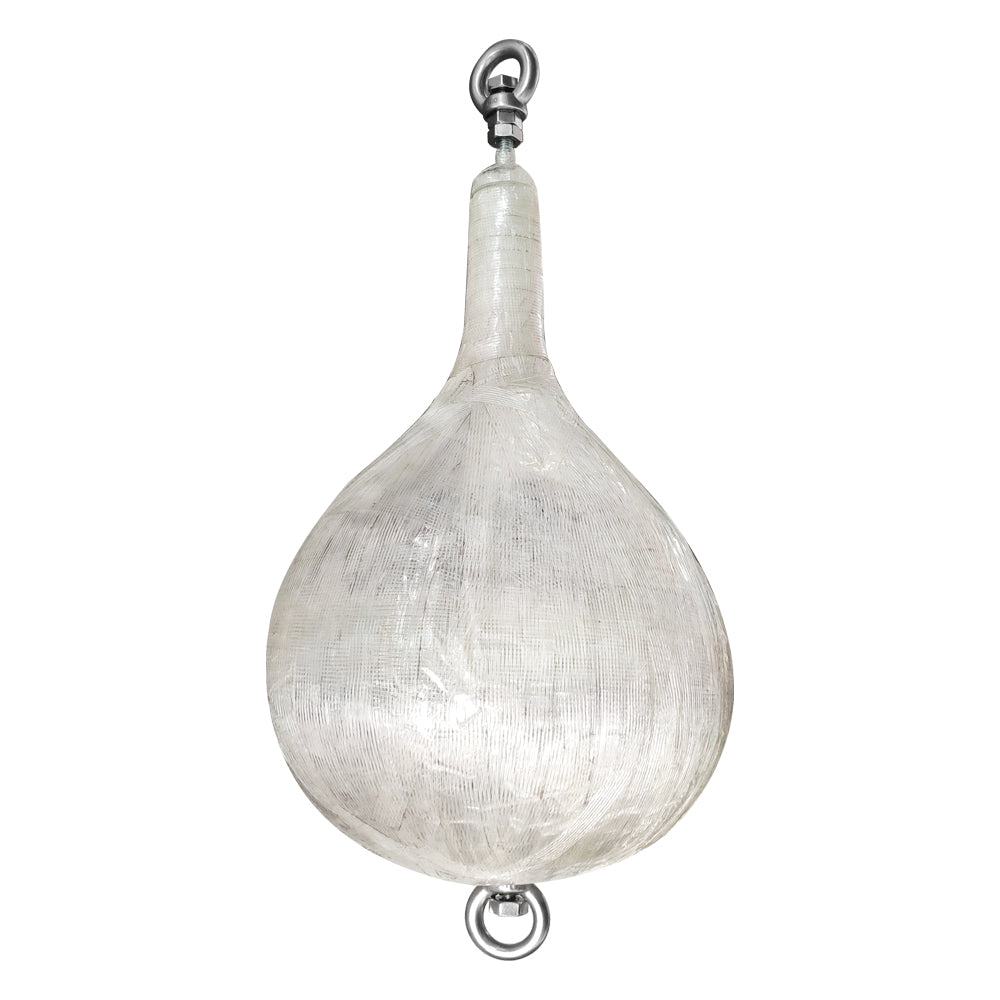

3. Impactor: .
a. The mass of impactor:45.5士0.5kg
b. Inner fling diameter 2.5 - 3.0mm' s pellets
