1.Standard:According to 1EC61730-2: 2016 , UL1703 standard requirement
2.Purpose:To determine whether any front and rear surfaces of the module of polymeric materials are capable of withstanding routine handling during installation and maintenance without exposing personnel to the danger of electric shock
Technical specifications:

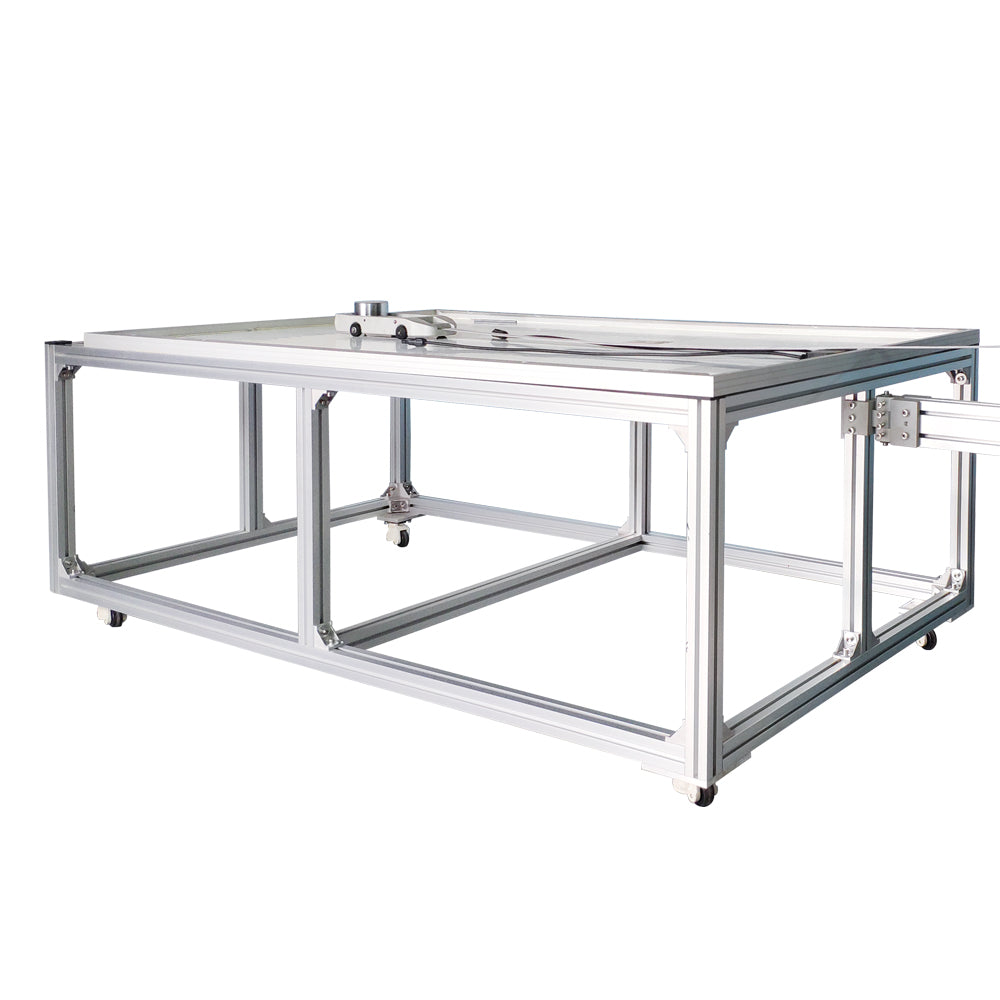

1、Operate Table material:Aluminum alloy, size approx 1.4m x 0.65m (Can according to the customer size to
customized)
2、Operate table include tracking pulley wheel,

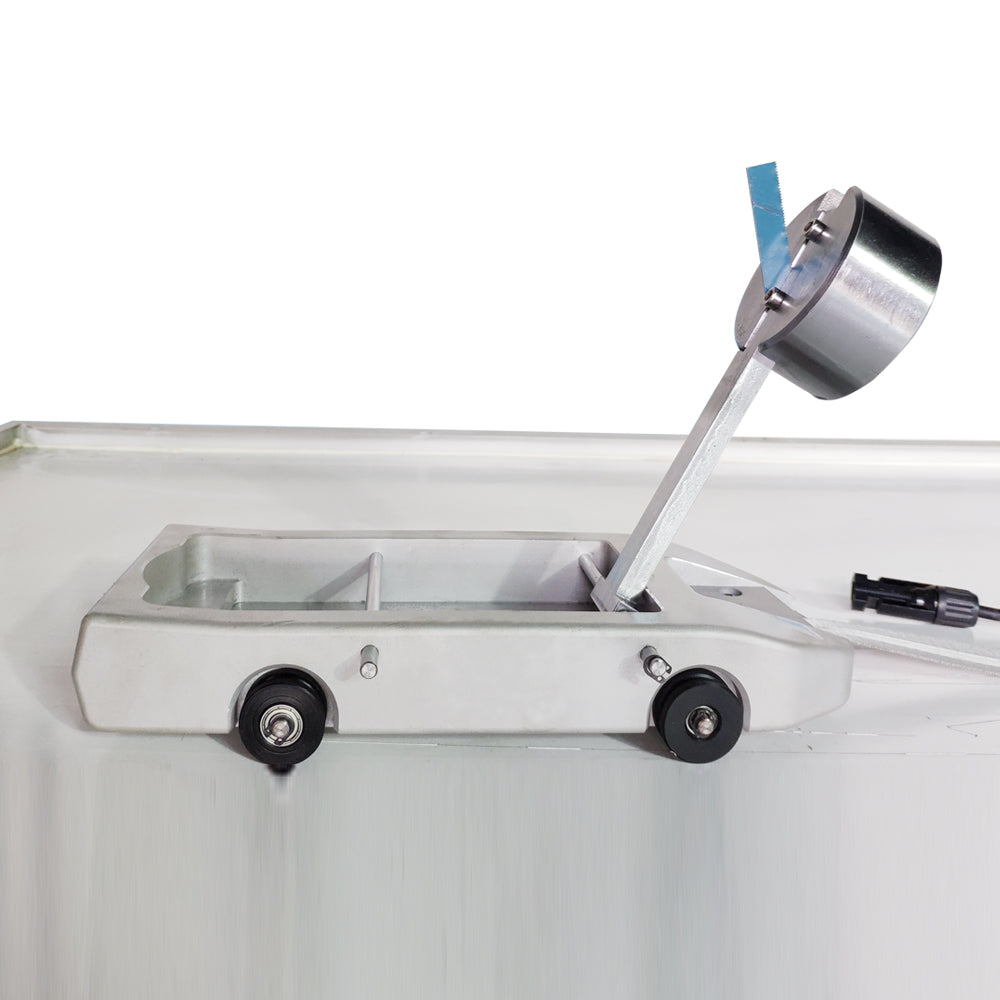

3、test fixture :
3.1. Adopt carbon steel blade
3.2. Thickness 0.64mm土0.05mm, blade radius requirement 0.1 15土0.025mm
3.3、Distance and angle can adjust
3.4、With weights box
3.5、According to IEC61730- 2 standard requirement to adjustable weights, promise the test point
suffer gravity 8.9N土0.5N

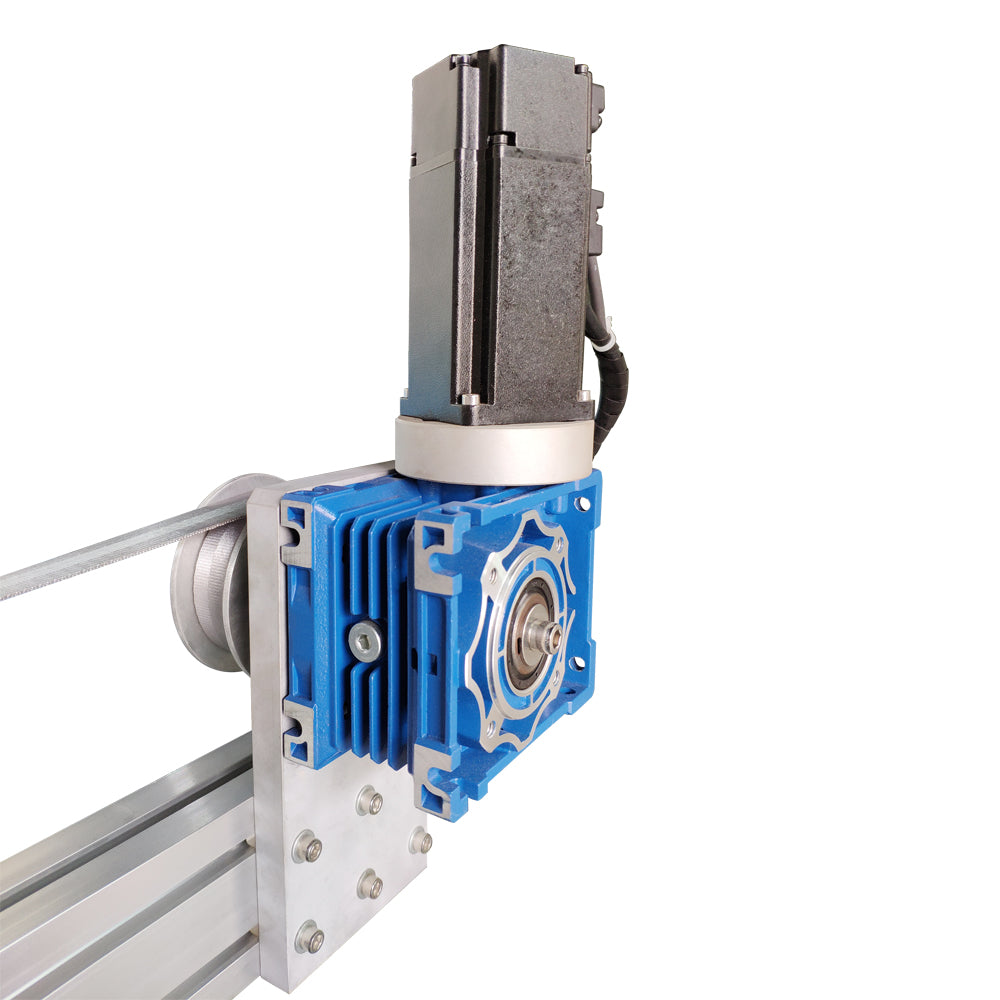

4、Adopt motor constant speed tracking，speed continue and adjust, tracking directing can adjust
5、Test fixture speed ( 150土30 ) mm/s
