1.Standard:According to IEC 61215-2:2016. UL1703 standard requirement
2.Purpose: To determine the ability of the module to withstand thermal mismatch, fatigue and other stresses caused by repeated changes of temperature
Technical specifications:
1.Temperature range: -40 - 85C
2.Temperature fluctuation:≤ 土1C
3.Temperature deviation:≤土1C
4.Temperature uniformity:≤土2C
5.Rise and down speed rate: Satisfy IEC 61215 standard requirement
6.Humidity range: 30 ~ 98%RH,
7.Relative humidity deviation: 士3%FS; deviation 85 t 2%RH;90土2%RH
8.Humidity fluctuation:土 2%RH
9.Humidity uniformity:≤2%RH
10.Thermal cycle testing, module surface ' s temperature change rate should not more than 100 C/h limit tempera-ture the lowest maintain time is 10 min, one test is 200 times or 50cycles
11. Placed 12 PCS test module

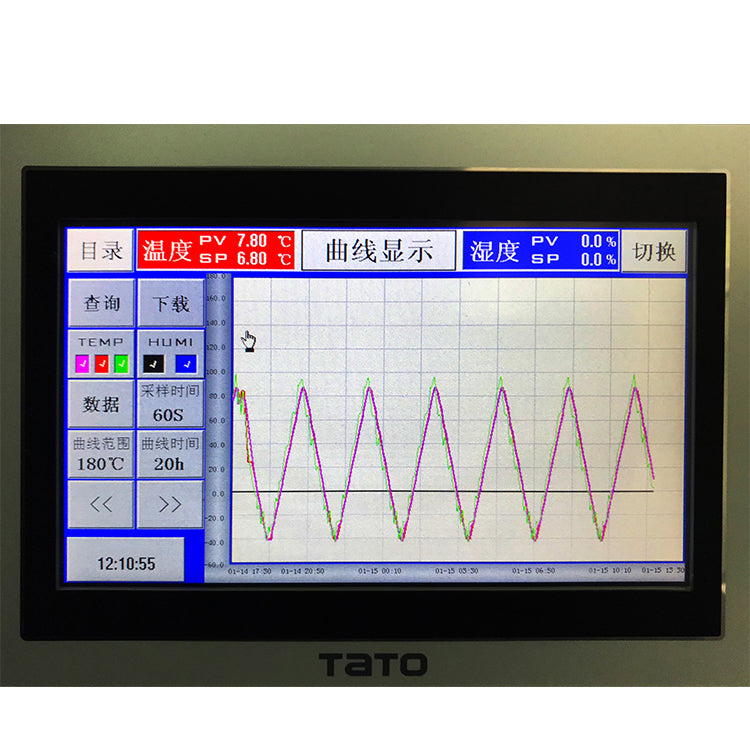

12.Real-time curve show:can show program set time ,adjust curve sample rate record cycle, show set value curve
13.Real-time set display:show perorm program number, period of time,the rest of time and cycle times, temperature
14.Humanized operation interface automatic control: Refrigeration compressor, automatic energy valve, temperature,humidity, electric heating, etc.
15. Independent control: The program controller will heat up/Humidification 1 dehumidification 1 cooling etc functioncomplete independent control, save the energy
16.Control system: automatic calculus
17.Display panel: Touch screel
18.Retrigerant: adopt the newest HFC environmental protection refrigerant
