1.Standard:According to IEC 61215- 2:2016, IEC61646 standard requirement
2.Purpose:to precondition the module with ultra -violet (UV) radiation before the thermal cycle/humidity freeze tests to identifty those materials and adhesive bonds that are susceptible to UV degradation
3.Use material:can completely obstruct ultraviolet rays. tightness ,good thermal insulation's high quality materials
4.Machine UV total irradiation area:more than 2000mm x 2000mm,meanwhile satisfy 2 pcs module (2mx 1m)

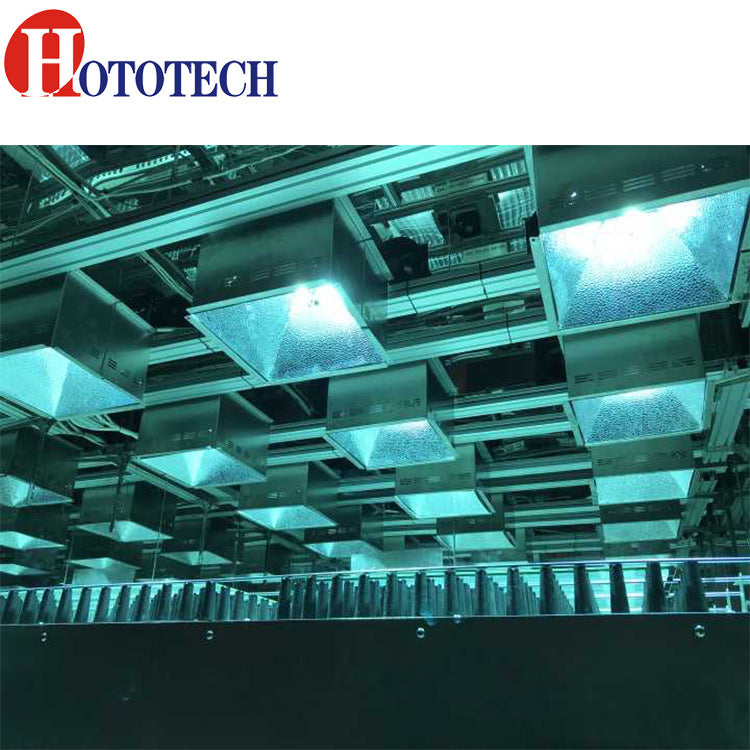

5.Light source life :system use metal halid lamp, lamp life is 1000 hours , delivery offer one set of spare part, use the
lifte at above 2000 hours
6.Single lamp UVA and UVA relative energy rate:UVB approx occupy total energy 3%- 10%
7.Irradiation strength:wavelength 280nm~400nm's irradiation strength can reach about 200W/ m2, promise the test
cycle reduce as far as possible
8.Irradiance uniformity:be better than土15%
9.Real-time monitor and show UVA and UVB strength
10.UVA (320nm- 400nm), UVB(280-320nm) Each one of the fiber optic probes
11.Module surface temperature:60C土5C
I2.Temperature resolution:0.1C
13.Ozone: almost no ozone is produced

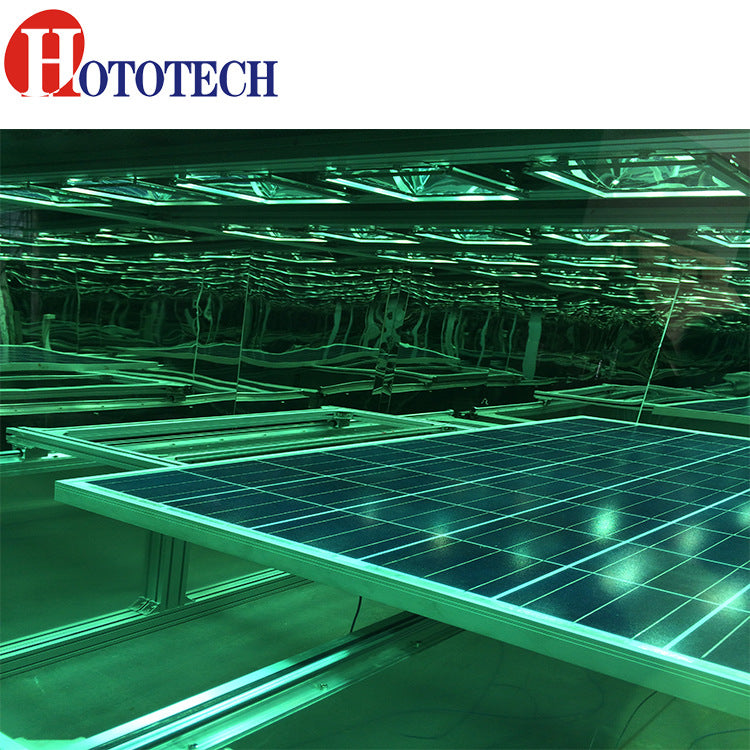

14.Light ways :upper light, module test plane vertical light source

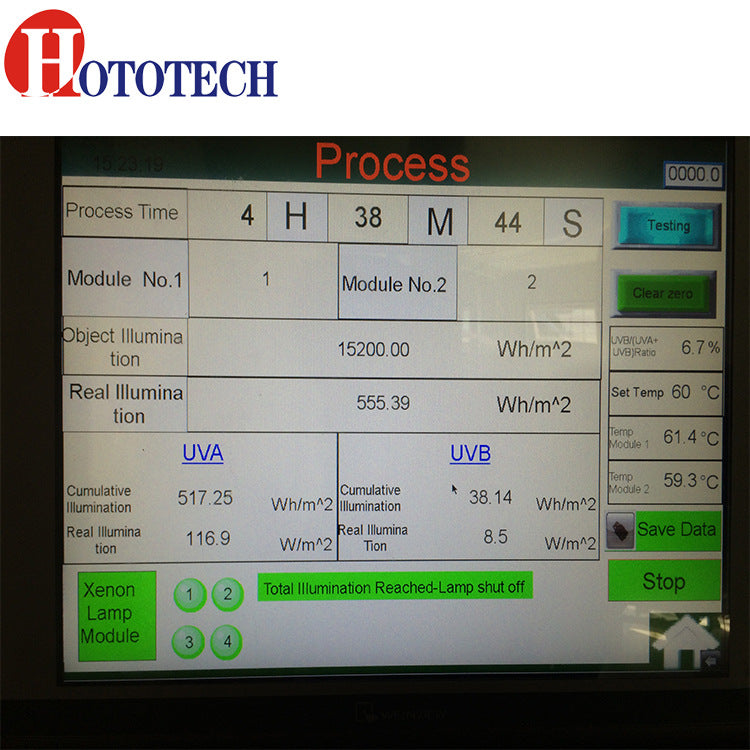

15.Touch screen operate and real-time monitor , when reached the set value will automatic cut off the light source
16.Real-time figure show module surface temperature, measurement accurate+0.1C
